Linn Kustom DSM form Basil Audio 2 streams/4 zones or 4 streams/8 zones in 1UI chassis

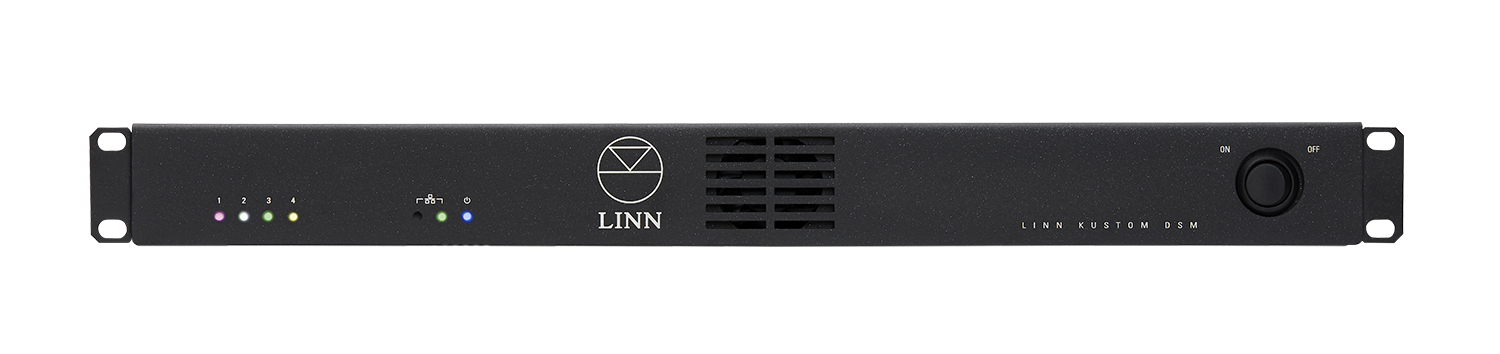

kustom-dsm_2-4_front_on_brackets

Kustom DSM 4 streams 8 zones

$8,000.00

Kustom DSM

4 stream / 8 zone

2 stream / 4 zone

Dimensions

Rack Height

1U (fits standard 19” rack)

Overall Size

(W) 450mm x (H) 44mm x (D) 280 mm (W) 482mm inc. mounting brackets (H) 51.5mm inc. feet

Weight

2.45 kg

2.36 kg

Audio

Formats

FLAC, ALAC, WAV, MP3,
WMA (except lossless), AIFF, AAC, OGG

Resolution

Up to 24-bit 192 kHz

Inputs

Ethernet

x 1 (1000BASE-T RJ45)

Digital

HDMI ARC

x4

x2

Toslink

x4

x2

SPDIF

x4

x2

Supported Input Sample Rates (kHz)(HDMI ARC, SPDIF & TOSLINK)

32, 44.1, 48, 88.2, 96, 176.4, 192

Analogue

RCA Phono

x 4 pairs

x 2 pairs

Outputs

Analogue

RCA Phono

x 8 pairs

x 4 pairs

Electrical

Analogue Line Inputs

Max Input Voltage

2.5 V RMS, 3.5 V peak

Input Impedance

10k Ω

SPDIF Digital Input

Input Voltage

500mV+/-100mV

Input Impedance

75 Ω

Analogue Line Outputs

Max Output Voltage

3 V RMS, 4.3 V peak

Output Impedance

300 Ω

DC Offset Voltage

< 5 mV

Book a Demo

Product Description

Kustom DSM is Linn’s new multi-zone network music player, designed specifically for the high end custom installation market and providing a competitively priced solution for quality sound throughout the entire home.

Proven, best-in-class Linn DSM streaming technology combined with continued innovation and investment into Surface Mount Technology has enabled Linn to create this dedicated installation product.

For the first time, we can offer a multi-zone network music player (4 stream / 8 zone or2 stream / 4 zone) in one compact, rack-mountable chassis.

Now we can offer our customers the highest quality sound throughout their whole home.

The addition of Kustom DSM to Linn’s range of high performance music systems gives us the flexibility to offer different solutions to suit different spaces in their home, without compromising on sound quality.

All systems can be combined seamlessly within the same installation, so the discreet Kustom DSM can power certain zones while a stand-alone system could be used in others for an even more immersive and enriching listening experience.

Additional Information

Finish

Black, Silver
