Product Description

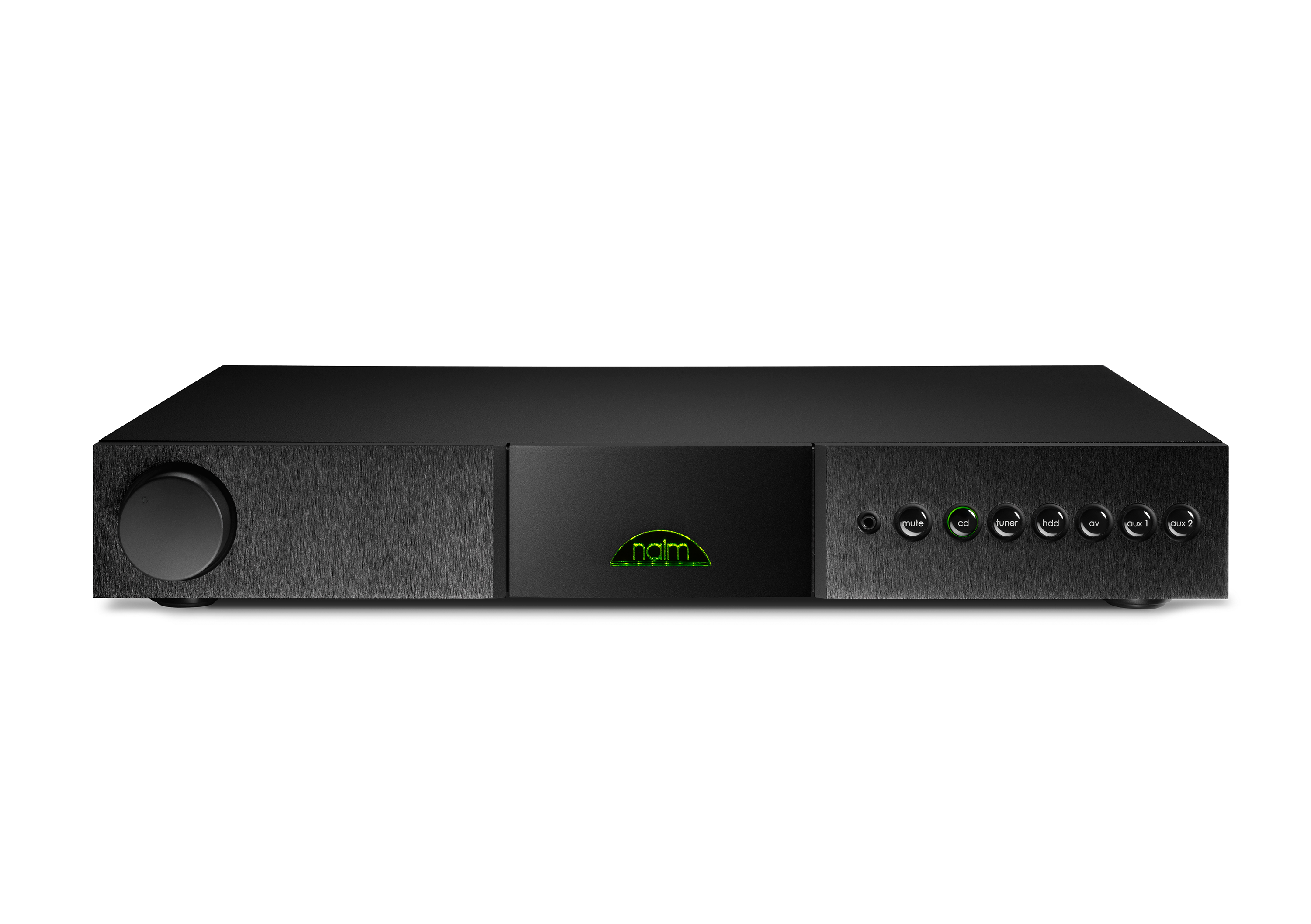

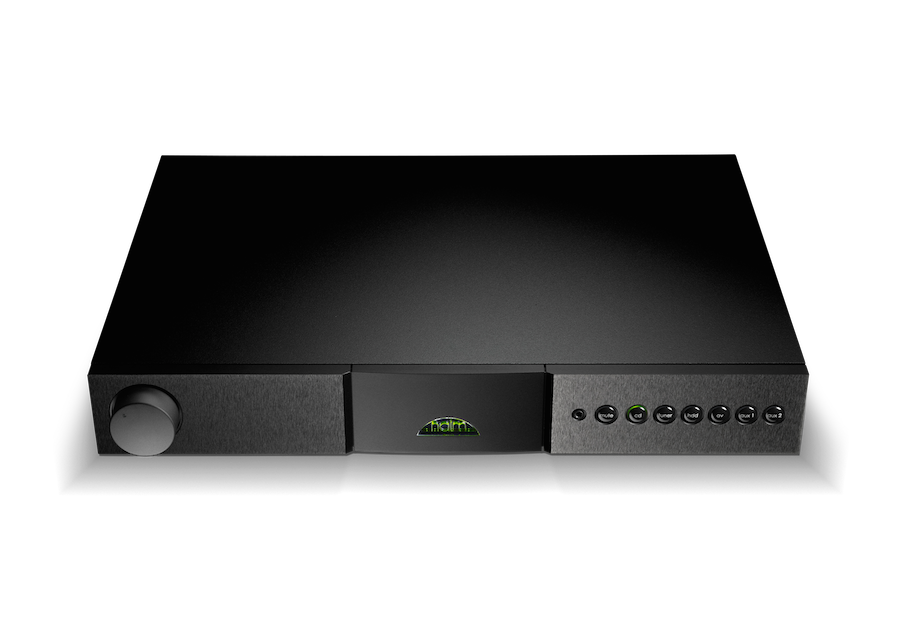

Naim’s entry-level separate preamplifier, the NAC 152 XS provides all the transparency and musicality you’d expect from Naim Audio, plus a long-term upgrade path to even better performance. The perfect alternative to an integrated amplifier, it’s an outstanding first step into the world of Naim Audio ownership.
Features
- Support for both DIN and RCA inputs to ease connection into a wide range of systems
- User configurable unity-gain AV input
- Full infrared remote control – RC5 input for wired remote control in complex installations
- Optional RS232 input/output for use in full home automation systems
- Can be powered from the preamp inputs of the NAP 155 XS or NAP 200 or external power supply (see Upgrade Path)
Technology & Craft
The NAC 152 XS, a replacement for the NAC 122x, is based on its larger brother the NAC 202 and features a hardwired motorised Alps volume control potentiometer delivering better performance and lower noise in use. The six DIN inputs are relay switched, improving performance. Much care in the design has been afforded to making the casework and PCB as low resonance as possible and to isolate the PCB from interference in its environment.

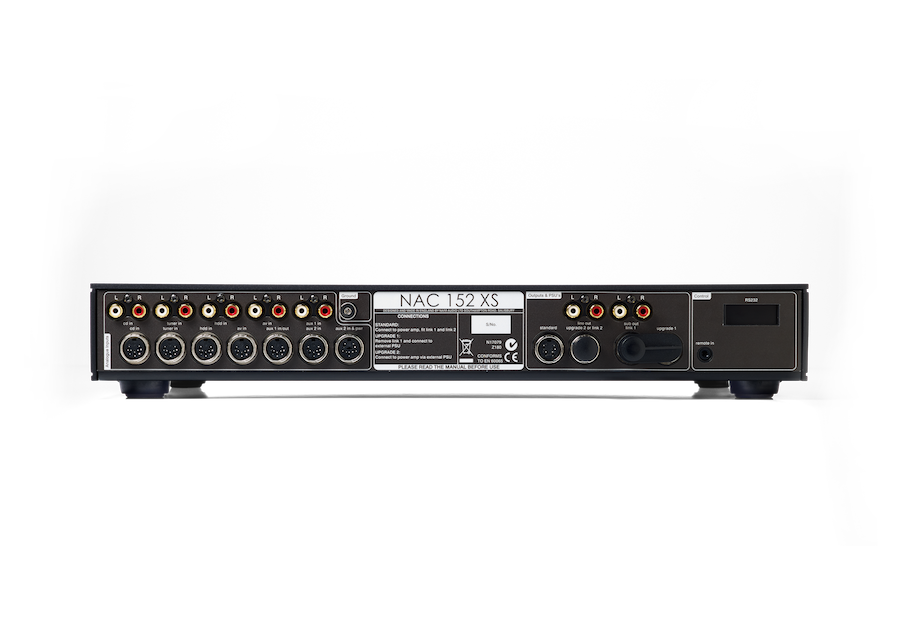

The NAC 152 XS features an additional output alongside the Naim Audio standard DINs. This stereo output on two RCA sockets is optimised for connection to an active subwoofer and supports the growing use of 2.1 systems. Its rear panel layout is similar to the NAC 202 and hence is Fraim friendly. The NAC 152 XS can be powered from the preamp power outputs of the NAP 155 XS or NAP 200 or can be upgraded by powering it from either a FlatCap XS or HiCap power supply. One of the DIN inputs can supply power to a Naim Audio StageLine outboard phono stage.
Audio Inputs
| Analogue Input |
5 x DIN, RCA, 1 x DIN, 1 x 3.5mm jack |
| Input Sensitivity |
130mV |
| Input Impedance |
47kΩ |
| Other Inputs |
AV input configurable for unity gain |
Audio Outputs
| Analogue |
2 x variable (DIN), 1 x fixed (RCA) |
| Line Outputs Fixed (level) |
130mV, 600Ω |
| Line Outputs Variable (level) |
775mV RMS |
| Output Impedance |
main <50Ω, sub <150Ω |
| Load Impedance |
10kΩ (min.) |
| Power Outputs |
Naim phono amplifier |
| Other Outputs |
1 x sub (RCA) |
| Frequency Response |
4Hz – 40kHz |
| THD |
0.042% THD+N@1kHz, 2Vin, 0.0775V out |
| Signal-to-Noise Ratio |
67dB at 0.775V |
Connectivity
| Remote Control |
Infra Red (RC5) |
| Remote Input |
1 x rear panel 3.5mm jack (RC5 modulated and unmodulated) |
| RS232 |
Optional (DE9 female) |
User Control
| Front Panel |
Volume control, seven button matrix |
| Handheld |
NARCOM-4 Remote Control |
Power
| Supply Voltage |
24V |
| Power Supply Options |
NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap |
Upgrades
| Power Supply |
FlatCap/HiCap |
Physical
| Dimensions (HxWxD) |
70 x 432 x 301 mm |
| Weight |
3.8 kg |
| Supplied with |
NARCOM-4 Remote Control |
Finish
| Front |
Brushed and black anodised |
| Case |
Black powder coated |
